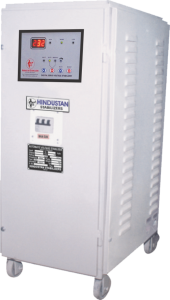

We are offering quality assured Digital Voltage Stabilizer which is procured from authentic and well-established vendors. It comprehensively tested on our end as well by our diligent quality auditors. We are availing it within affordable price range with assurance of timely delivery direct at client’s premises in order to enhance their convenience.Digital Servo Voltage Stabilizer uses an advance electronic controlled servo motor concept to govern a motorized variable transformer. Because of the motors involved, there is a small delay in voltagecorrection. However, output voltage accuracy is usually ±1% with input voltage changes of up to ±50%.This type of technology tends to be extremely effective when considering large three phase applications,as it is able to maintain its accuracy of all these phases, despite of input voltages balance and load balance at any power factor.

WHY NEED OF DIGITAL SERVO VOLTAGE STABILIZER ?

Regular fluctuation in AC supply is a common phenomenon in whole country. The voltage requirement of different electrical appliances is vary to a great extent. The electronics equipment like spectrometer, PH-Meter, X-Ray plant, recorders etc. are all affected by high main voltage, whereas the refrigerators, deep freezers, incubators and other compressors etc. are affected by low main voltage.

Technical Specification
S.no. DESIGN IS 9815-1994
1 INPUT VOLTAGE RANGE 170V – 270V SINGLE PHASE

340V- 480V THREE PHASE

2 OUTPUT VOLTAGE RANGE 230V + 1%  SINGLE PHASE

415 V + 1% THREE PHASE

3 CONTROL PANEL DISPLAY DIGITAL MICRO PROCESSER BASED
4 LOSSES AT NO LOAD

& ON LOAD

BELOW 1.5%
5 COOLING AIR COOLED / OIL COOLED
6 OPERATION AUTO / MANUAL
7 REGULATOR AUTO TRANSFORMERS VARIAC TYPE
8 RESPONSE TIME 10 M/S
9 SPEED OF CORRECTION 20 V/S – 40 V/S
10 WINDING COPPER WINDING WITH 99.9% ELECTROLYTIC GRADE COPPER
11 LAMINATION USED CRGO LAMINATION IN BUCK BOOST TRANSFORMERS
12 FREQUENCY 50 HZ
13 EFFICIENCY 98%
14 RELATIVE HUMIDITY 95%
15 AMBIENT TEMPRATURE 0-55 DEGREE C
16 DUTY CYCLE CONTINOUS 24X7
17 WAVE FORM DISTORTION NIL
18 EARTHING PROVIDED
19 CABLE BOX & TERMINAL HIGH GRADE COPPER BUS BARS PROVIDED
20 INSTALLATION INDOOR
21 POWER FACTOR SUITABLE
22 OVER LOAD CAPACITY 2 HRS.
23 CARBON HIGH GRADE GRAPHITE

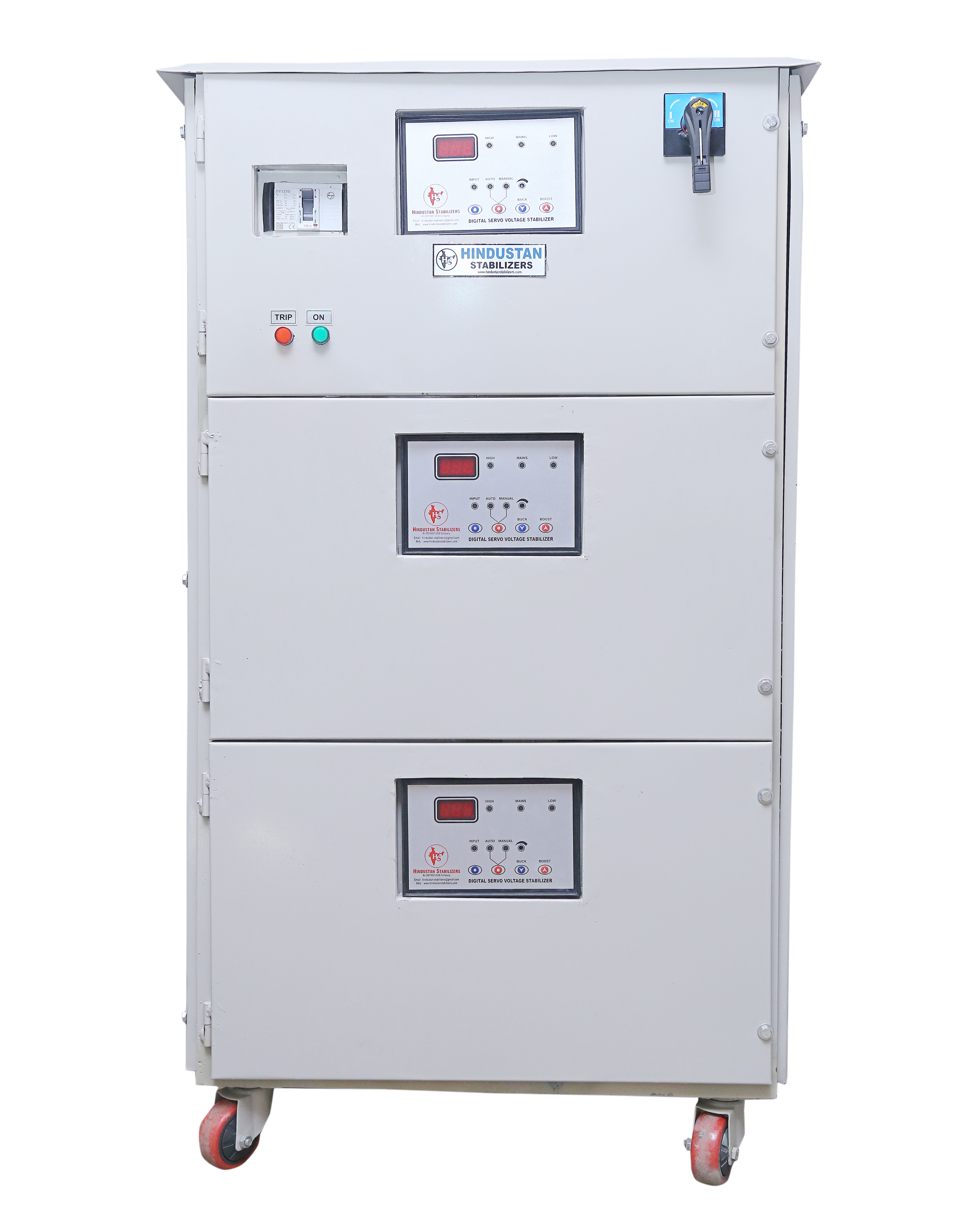

Three Phase Unbalance Load / Suppy Servo Air Cooled

Our best range of Servo Stabilizers are also getting appreciation from clients of different industries. Such stabilizers are made of top-quality material and have impeccable technical built-up. It gives outstanding performance in controlling voltage and saving energy from lose. We ensure for flawless working and secure current flowing system by using such unbalanced servo stabilizer. Our offered stabilizers are also based on latest industry trend and give effective services for many years. Custom design and technical specifications made unbalanced stabilizers are also available through us.

We provide with top-quality Air Cooled Servo Stabilizers, which are made of high-grade raw material. These stabilizers help in controlling voltage fluctuations before damaging device. It also adjusts current flow in machines like CNC machine, PLC machines and computer controlled machines. We offer technically sound and efficient air cooled stabilizers at best prices. Some custom design and parameter made stabilizers are also available through us. The stabilizers are used at Showrooms and in Residential electrical control systems, Medical equipment, Factories etc.

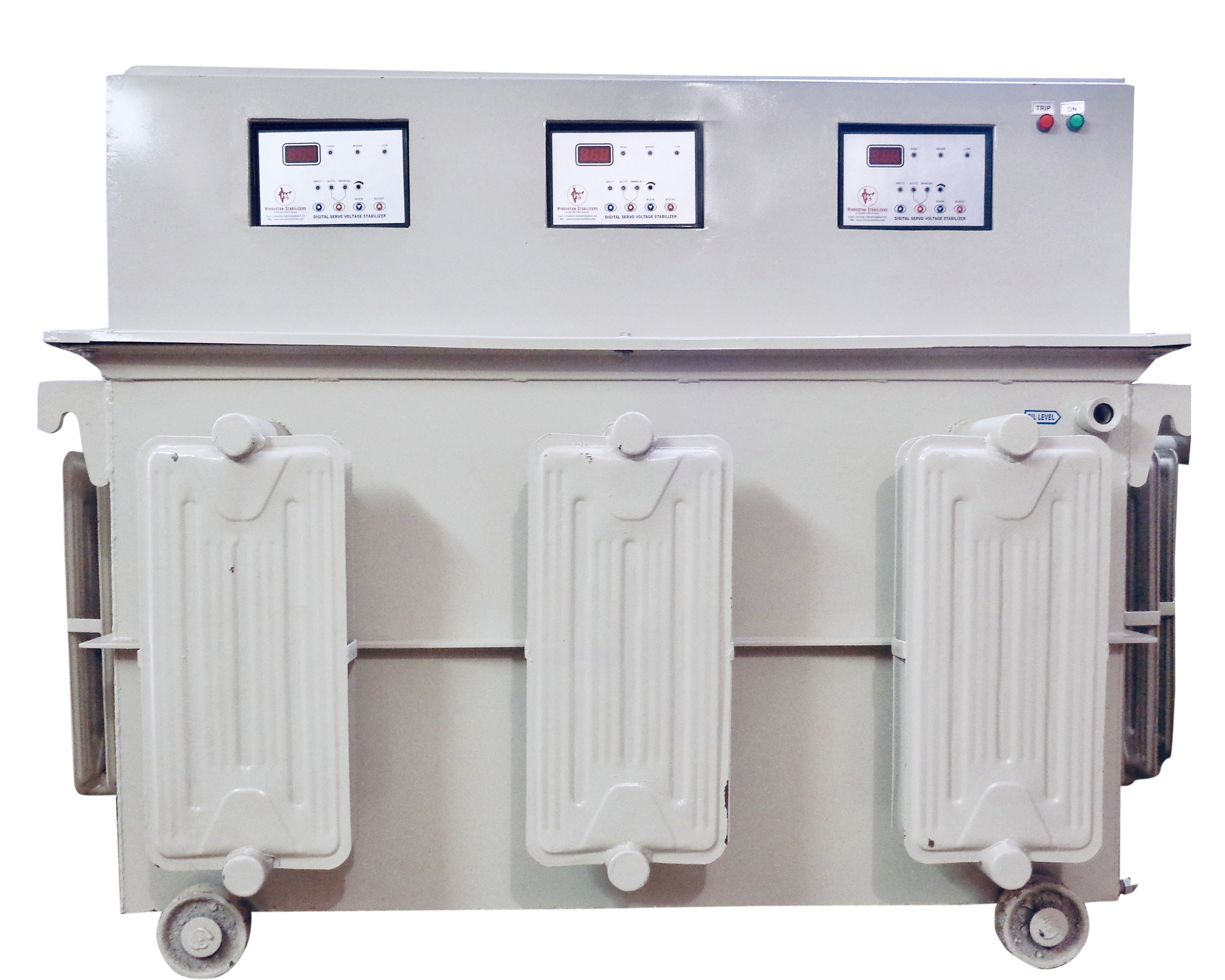

Three Phase Unbalance Load / Suppy Servo Oil Cooled

Our company is professionally involved in manufacturing, exporting, and supplying of Three Phase Oil Cooled Servo Voltage Stabilizers. These Three Phase Oil Cooled Servo Controlled Voltage Stabilizers are fabricated using the authentic raw materials and components. We adopt modern tools and latest technology in manufacturing these stabilizers. It is acknowledged by our customers for its great fluctuation tolerance. The offered stabilizer is manufactured under the supervision of our experts and tested on the basis of various quality norms. Our stabilizers are highly cost-effective.

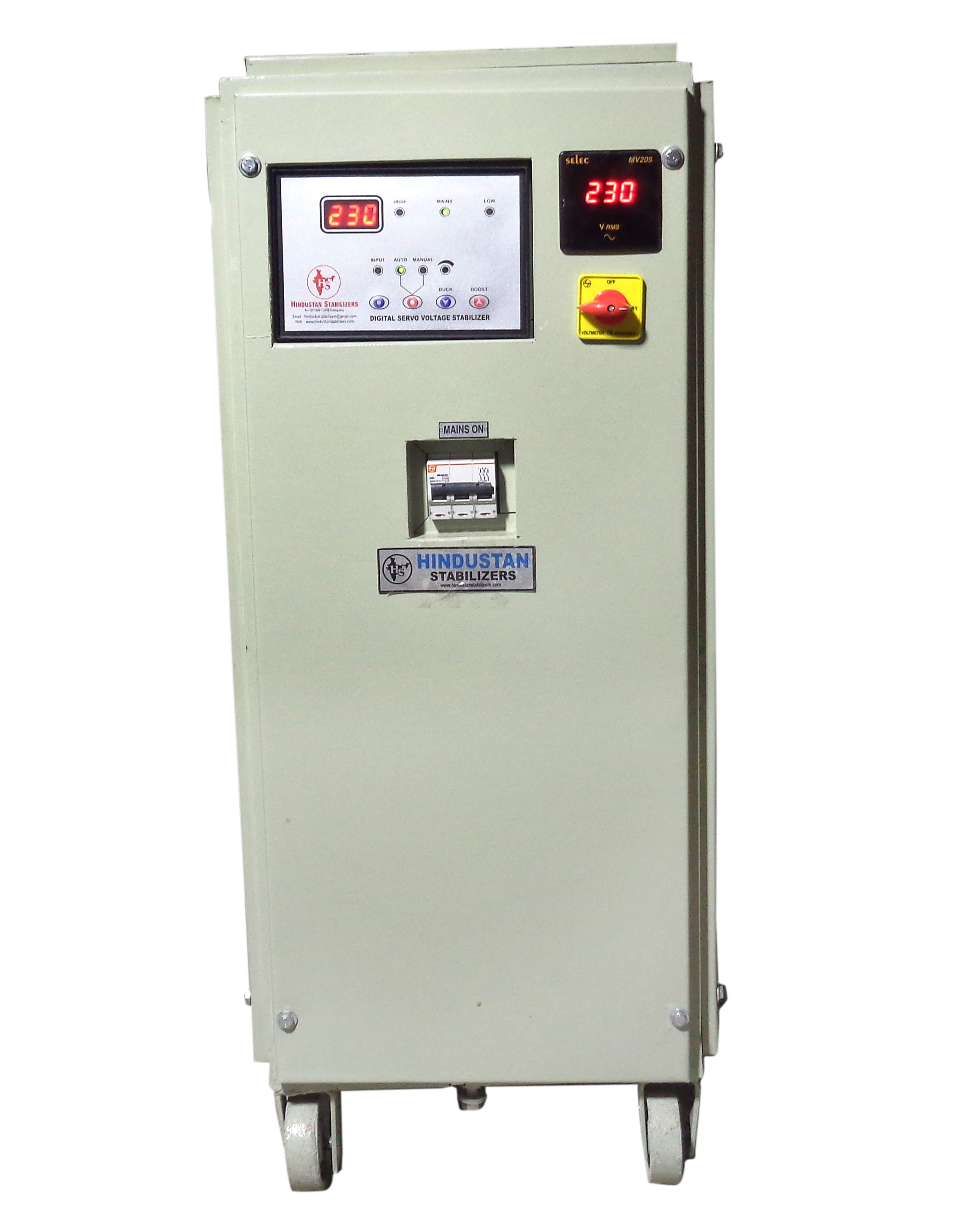

Single Phase Servo Voltage Stabilizers Air Cooled

We offer a good range of Single Phase Servo Stabilizers, which are made of premium quality raw material and are effective in electrical uses. Get high functional and energy efficient single phase stabilizers from us. Such stabilizers are easy to operate and give reliable voltage flow performance without any hassle. These stabilizers help in protecting devices from high voltage and controls input and output operation of current in single phase device. We provide with modern design and technically sound single phase stabilizers for varied electrical utilities. Custom design and specifications made single phase servo stabilizers are also available through us.

Single Phase Servo Voltage Stabilizers Oil Cooled

We offer a good range of Single Phase Servo Stabilizers, which are made of premium quality raw material and are effective in electrical uses. Get high functional and energy efficient single phase stabilizers from us. Such stabilizers are easy to operate and give reliable voltage flow performance without any hassle. These stabilizers help in protecting devices from high voltage and controls input and output operation of current in single phase device. We provide with modern design and technically sound single phase stabilizers for varied electrical utilities. Custom design and specifications made single phase servo stabilizers are also available through us.

Key Features

Applications
